kz-32 strapping machine taiwan Pneumatic combination

FOB Reference Price:Get Latest Price
US $700-900 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Material:
Steel
Application:
Machine Packing
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
XINNAIPACK strapping machine taiwan
Model Number:
KZ-32 strapping machine taiwan
Usage:
Outer
Type:
General strapping machine taiwan
strap width:
32mm
strap thickness:
0.8-1.2mm
strap material:
steel strapping strapping machine taiwan
use:
small industry strapping machine taiwan
automatic grade:
semi-automatic strapping machine taiwan
Supply Ability
Supply Ability:
1800 Set/Sets per Month
Packaging & Delivery

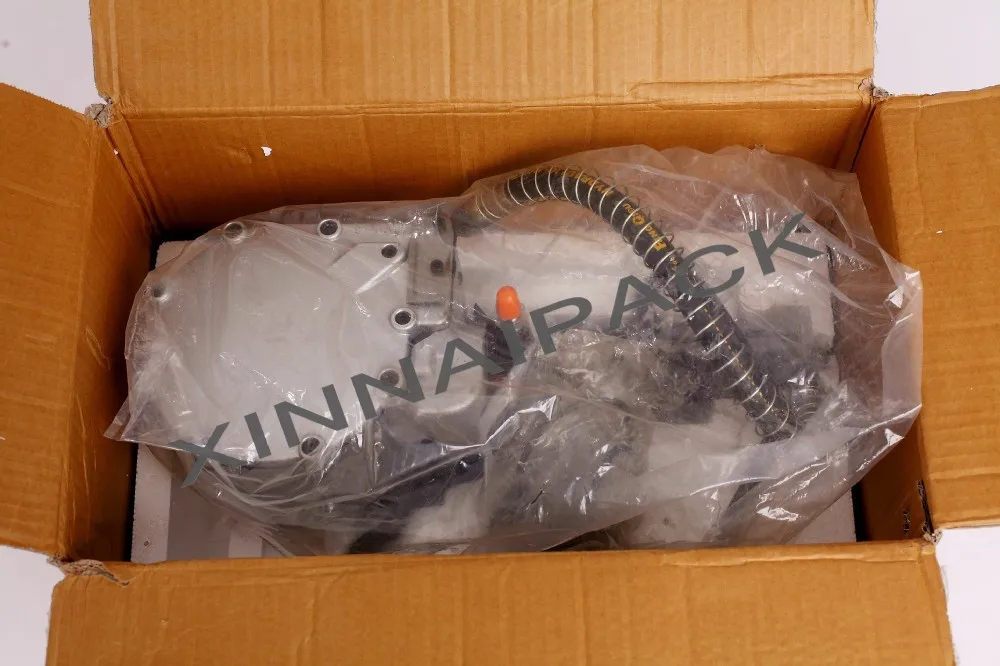

Packaging Details
carton
Port
Shanghai
Lead Time :
3 working days

kz-32 strapping machine taiwan  Pneumatic combination

parameter :

strap material

Tensile strength

tensioning stength

strap tensioning speed

spec

air pressure

weight

steel strap



≥18.4KN

≥9.8KN/0.6Mpa

4.2m/min

32x(0.8~1.2)mm

0.4∼0.6Mpa



14kg



Maintenance & Repair:

*The problems of wearing parts, loose screw, environmental pollution, and bad lubricating probably cause the malfunction during the operation. You shall clear it promptly to make it run properly. Good attention to the maintenance will have a much longer use of steel strapping tools.

*Before every use, it shall be treated with lubricant.

*Timely remove the dust and dirt on the friction pulley.



operation process







strapping example





product details picture

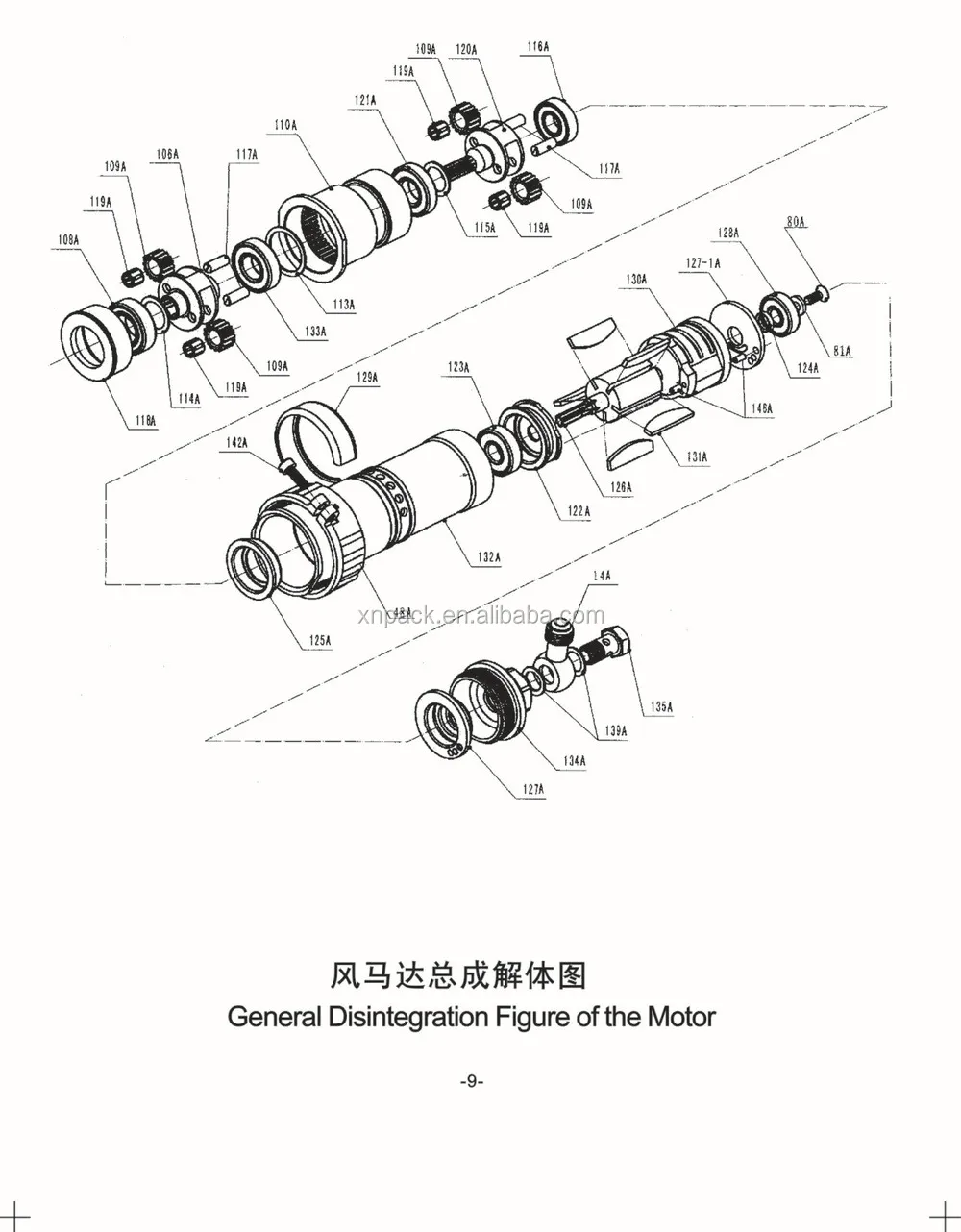

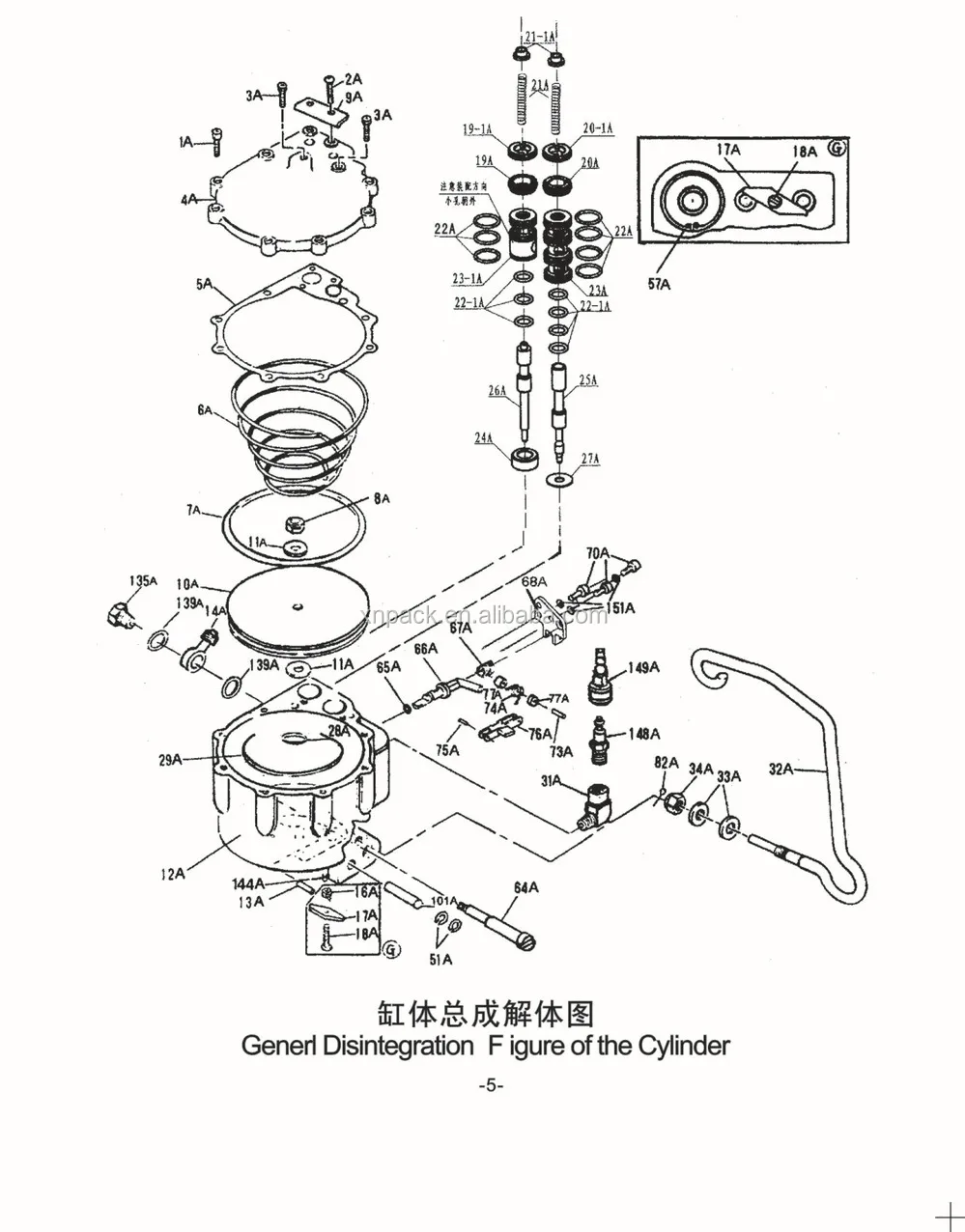

Exploded view of tool

work shop
