A480 pneumatic combo steel strapping tool for 13-19mm
Advantages
- Tension, seal and cut with one tool.
- Air power generates uniform tensioning and strapping efficiency.
- Recommended for coils, pipes, rods and irregular-shaped packages.
- Single notch sealer works with standard, super-duty and high- tensile steel strapping.
- Use with 13mm,16mm,19mm" metal pusher seals.

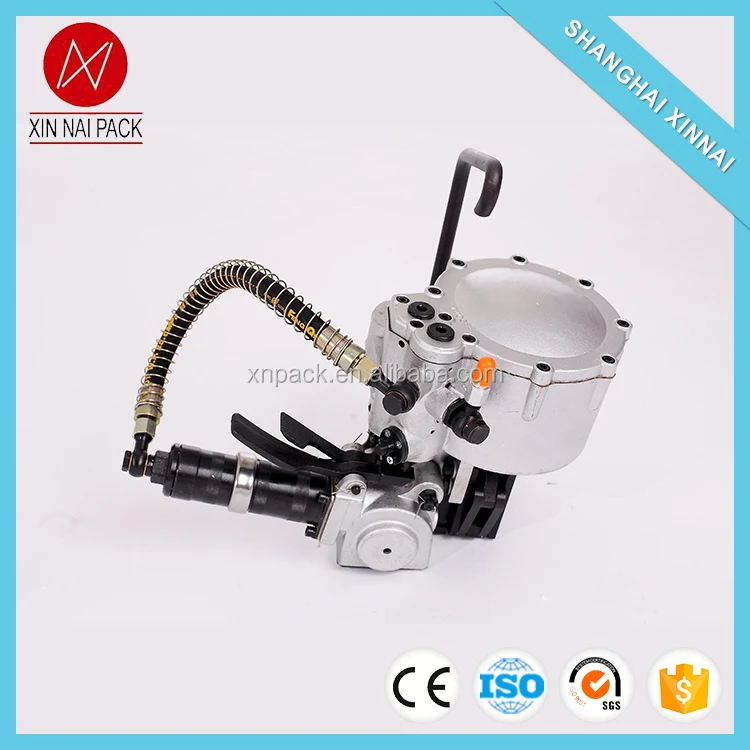

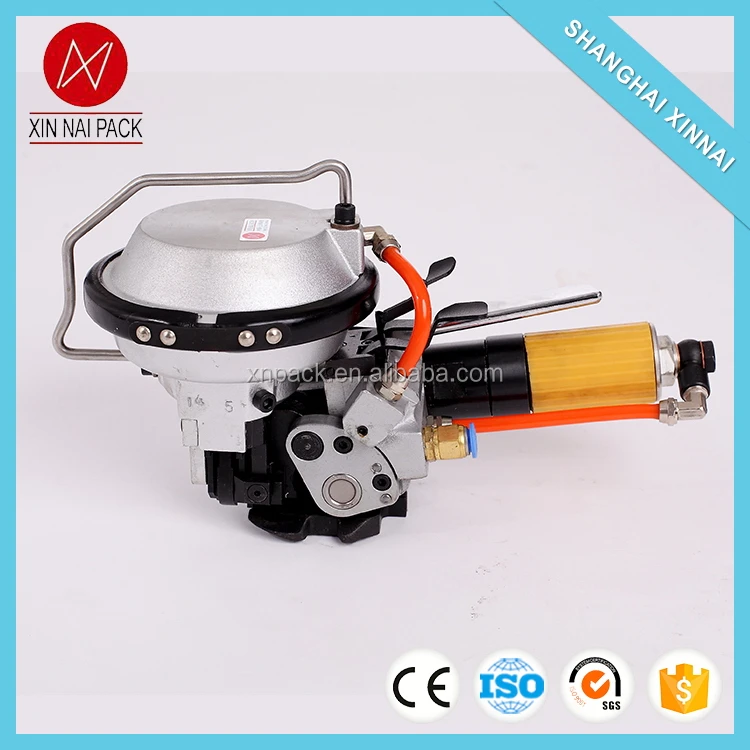

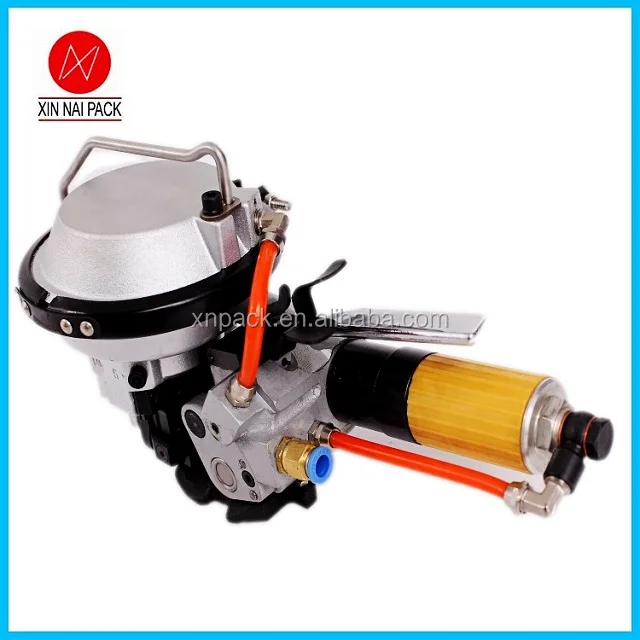

Product details picture
Technical data
| Model | A480 KZ-19/16/13 |
| Seal tensile strength | ≥6.3KN |
| tensioning stength | ≥4.9KN/0.6Mpa |
| strap tensioning speed | 5.5m/min |
| strap width | 13/16/19mm (one machine suit for one size strap) |
| strap thickness | 0.38-0.8mm |
| air pressure | 0.42~0.6Mpa |
| strap material | steel strap |
| weight | 5kg |

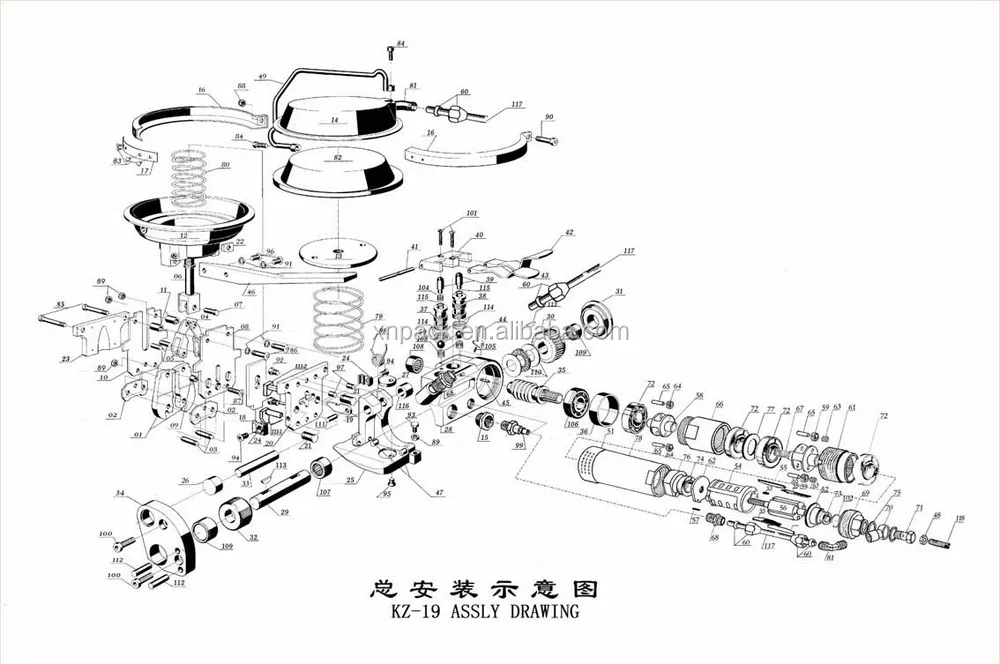

Exploded view of tool

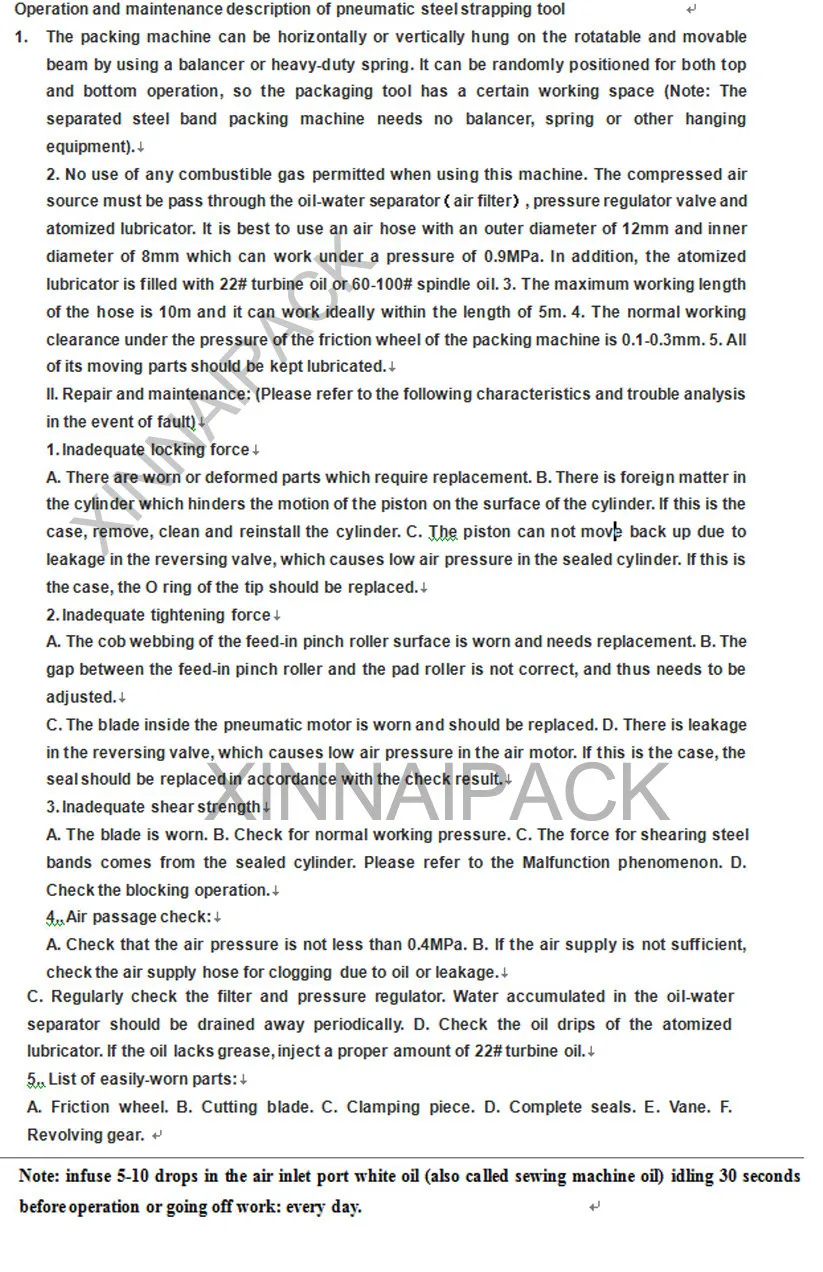

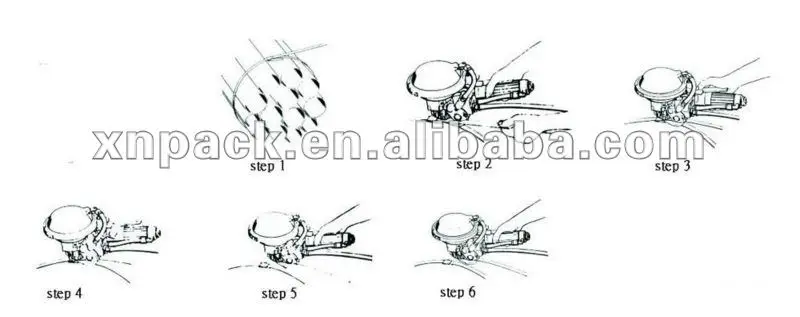

Operation instruction

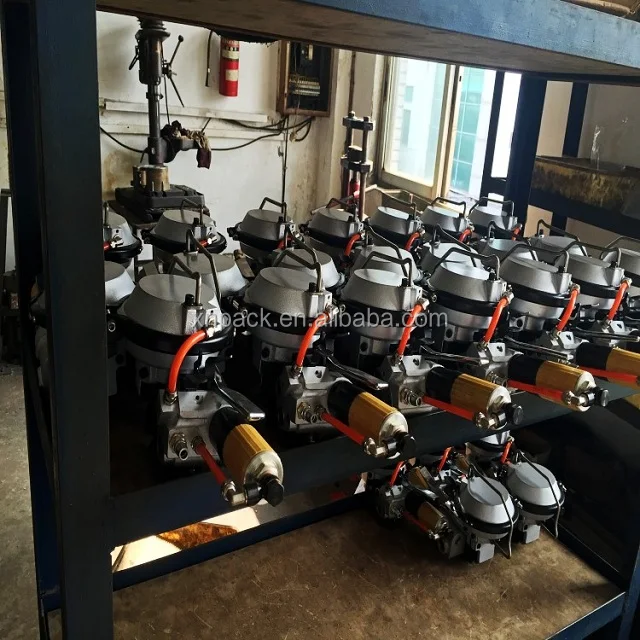

factory and office
Maintenance & Repair
*The problems of wearing parts, loose screw, environmental pollution, and bad lubricating probably cause the malfunction during the operation. You shall clear it promptly to make it run properly. Good attention to the maintenance will have a much longer use of steel strapping tools.
*Before every use, it shall be treated with lubricant.
*Timely remove the dust and dirt on the friction pulley.
It is pneumatic mode tools,with light weight,safe and convinent operation,strong banding power,well-locked,low labour intensity and easy to use.
It is hand operated, finish tensioning, sealing, cutting as a whole, greatly increases the packing efficiency. It is of latest design, compact and durable.
* Combined, finish tensioning, sealing
* Efficient and safe, hands protective.
* Ergonomic design, easy to operate
* Strong joint, high bonding strength.
